From Prototype to PPAP: What Changes in an Automotive Wire Harness Project

In automotive development, building a functional prototype is only the first step. A wire harness that works in early vehicle tests is not automatically ready for series production.

Between prototype and SOP (Start of Production), the project must pass through a rigorous industrialization process that includes design validation, process development, quality planning, and PPAP approval.

To many buyers, the prototype and production harness may appear almost identical. In reality, the level of engineering control, documentation, and process capability changes significantly.

This article explains what typically changes as an automotive wire harness project progresses from prototype builds to PPAP-approved production.

---

What Is PPAP?

PPAP (Production Part Approval Process) is a structured method used throughout the automotive industry to demonstrate that:

• product design requirements are fully understood
• manufacturing processes are capable
• quality controls are in place
• production parts consistently meet specifications

PPAP is part of the broader APQP (Advanced Product Quality Planning) framework.

OEMs and Tier 1 suppliers use PPAP to reduce launch risk and ensure repeatable quality.

---

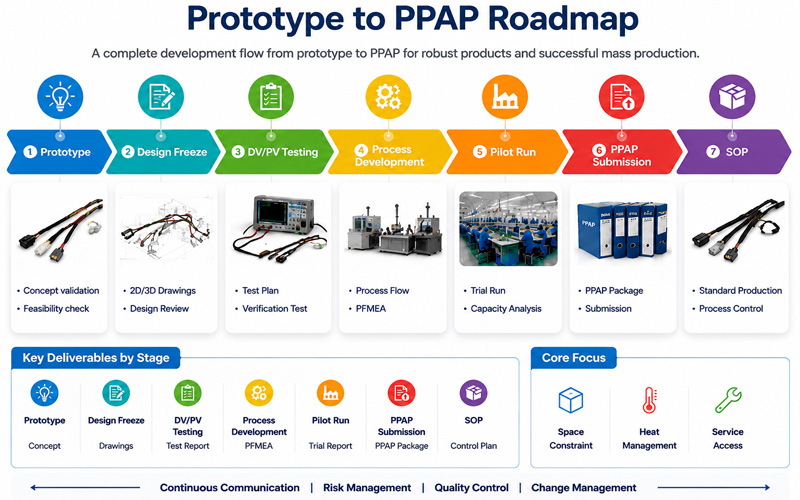

Stage 1: Prototype Phase

The prototype phase focuses on verifying design intent.

Typical objectives include:

• fit and function checks
• electrical verification
• vehicle integration
• early durability testing

At this stage, speed and engineering flexibility are prioritized over process optimization.

---

Characteristics of Prototype Builds

Prototype harnesses often involve:

• manual assembly
• temporary tooling
• limited documentation
• engineering change flexibility
• low quantities

Material substitutions may be accepted if they do not affect functionality.

---

What Is Usually Missing

Prototype builds may not include:

• validated work instructions
• process FMEA
• control plans
• capability studies
• formal traceability systems

A prototype proves the concept, not production readiness.

---

Stage 2: Design Freeze and Validation

Once the design stabilizes, formal validation begins.

Activities may include:

• DV (Design Validation)
• environmental testing
• connector retention testing
• sealing verification
• electrical testing

Engineering changes become more controlled during this stage.

---

Stage 3: Process Development

The manufacturing process is then industrialized.

Key activities include:

• fixture and tooling design
• crimp parameter optimization
• test fixture development
• operator training
• documentation creation

The goal is to convert engineering intent into a repeatable production process.

---

Stage 4: Pilot Production

Pilot builds validate production readiness using near-production conditions.

Objectives include:

• verifying tooling and fixtures
• validating work instructions
• confirming cycle time
• identifying process weaknesses
• collecting dimensional and electrical data

Pilot runs are often referred to as trial builds or pre-production builds.

---

Stage 5: PPAP Submission

The supplier prepares a formal PPAP package for customer approval.

Depending on submission level, the package may include:

• PSW (Part Submission Warrant)
• DFMEA
• PFMEA
• Control Plan
• Process Flow Diagram
• Dimensional Results
• Material Certifications
• MSA
• Capability Studies
• Test Reports

Approval authorizes mass production shipments.

---

Key Differences Between Prototype and PPAP Production

Area	Prototype	PPAP Production
Quantity	Low volume	Series production
Tooling	Temporary/manual	Production tooling
Documentation	Minimal	Full APQP documentation
Process Control	Limited	Validated and monitored
Traceability	Often basic	Full lot traceability
Change Control	Flexible	Strictly controlled
Inspection	Engineering-focused	Defined control plan
Quality Evidence	Functional results	Formal records and studies

---

What Changes in Manufacturing Control

Crimp Process Validation

Production requires:

• crimp height specifications
• pull force validation
• cross-section analysis
• ongoing monitoring

---

Testing Standardization

Electrical testing becomes fully documented and repeatable.

Typical production tests include:

• continuity
• insulation resistance
• HiPot
• functional verification

---

Traceability

Production parts are typically traceable by:

• lot number
• operator
• machine
• date code
• material batch

---

Supplier Management

Approved suppliers and controlled purchasing processes become mandatory.

---

Why Prototype Success Does Not Guarantee Production Success

A harness can perform perfectly in prototypes yet encounter issues in production due to:

• inconsistent crimps
• operator variation
• material changes
• inadequate fixtures
• uncontrolled process conditions

Production readiness requires process capability—not just design functionality.

---

Common Challenges During PPAP Preparation

• late engineering changes
• incomplete specifications
• unstable supply chain
• poor process capability
• missing validation reports

Early collaboration between engineering, purchasing, and manufacturing helps reduce delays.

---

How Buyers Can Accelerate PPAP Approval

Customers can support faster approval by providing:

• finalized drawings
• clear specifications
• validation requirements
• PPAP level expectations
• forecast volumes
• change history

Complete and stable information reduces rework and documentation cycles.

---

How FPIC Supports Prototype-to-Production Programs

FPIC supports automotive and industrial customers throughout the full project lifecycle:

• prototype builds
• DFM review
• tooling development
• pilot production
• PPAP documentation
• mass production

Our engineering and quality teams help customers transition smoothly from concept validation to production launch.

---

Final Thoughts

The journey from prototype to PPAP is where product design becomes a controlled manufacturing system.

Although prototype and production harnesses may look similar, the underlying differences are substantial:

• validated processes
• documented controls
• traceability
• statistical evidence
• formal customer approval

Understanding these changes helps buyers plan more effectively and reduces risk during program launch.

---

FAQ

What is PPAP in wire harness manufacturing?

PPAP is the formal approval process demonstrating that a supplier can consistently produce parts meeting all requirements.

Can prototype parts be used for production?

Not typically. Prototype builds usually lack validated processes and required documentation.

What documents are included in PPAP?

Common documents include PSW, PFMEA, Control Plan, capability studies, and test reports.

Why does PPAP take time?

It requires process validation, data collection, and customer review.

How can suppliers reduce PPAP delays?

By engaging early, stabilizing design inputs, and building robust manufacturing controls.

---
