Custom M12 5-Pin Cable Assembly for Industrial Sensor Applications
Project Overview
FPIC recently supported a German-based global sensor manufacturer with the development and production of a customized M12 5-pin cable assembly for industrial monitoring equipment.
The customer specializes in sensor solutions used for compressed-air and industrial gas monitoring applications. To improve product reliability, installation efficiency, and manufacturing consistency, the customer required a cable assembly partner capable of supporting both technical optimization and stable production.
Through close engineering communication and real-time project follow-up, FPIC provided a complete manufacturing solution covering:
- Product evaluation
- Connector and cable optimization
- Prototype support
- Assembly process development
- Production verification
- Electrical testing
- Mass production preparation
Customer Requirement
The customer was looking for a reliable manufacturing partner with experience in industrial sensor cable assemblies.
The main requirements included:
| Requirement | Customer Expectation |
| Product Type | M12 5-pin cable assembly |
| Application | Compressed-air and industrial gas monitoring equipment |
| Customer Location | Germany |
| Manufacturing Location | Shenzhen, China |
| Product Requirement | Standard + customized solution |
| Key Concerns | Waterproof performance, connection stability, easy assembly, cost optimization |
The customer needed more than a standard M12 cable.
The project required a supplier who could understand the application environment and optimize the product for practical production and installation.
Project Challenges
1. Reliable Connection for Industrial Sensor Applications
Industrial monitoring equipment often operates in environments requiring:
- Stable signal transmission
- Long-term connection reliability
- Resistance to vibration and environmental conditions
The M12 interface needed to provide secure mating performance while maintaining consistent electrical connection.
2. Improved Installation Efficiency
The customer required a cable assembly that could be installed easily during equipment assembly.
FPIC optimized the connector structure and assembly process to improve:
- Installation convenience
- Operator efficiency
- Production consistency
3. Balance Between Performance and Cost
For industrial applications, customers need both reliability and competitive manufacturing cost.
FPIC worked with the customer to optimize:
- Connector selection
- Assembly process
- Production method
- Manufacturing efficiency
The goal was not simply to reduce cost, but to achieve a better balance between performance and total manufacturing value.
FPIC Solution
FPIC participated in the project from product evaluation to production preparation.
The cooperation process included:
Engineering Communication
FPIC engineers reviewed:
- Product requirements
- Application environment
- Connection requirements
- Assembly expectations
Based on customer requirements, FPIC provided suggestions regarding connector structure and manufacturing feasibility.
Product Optimization
During development, FPIC optimized the M12 cable assembly solution to achieve:
- Stable connection
- Reliable sealing
- Easier installation
- Improved production efficiency
The optimized solution supported the customer’s product development and future production requirements.
Manufacturing Process of M12 5-Pin Cable Assembly
To demonstrate production capability and process control, FPIC recorded the complete assembly process during this project.
The manufacturing workflow includes:

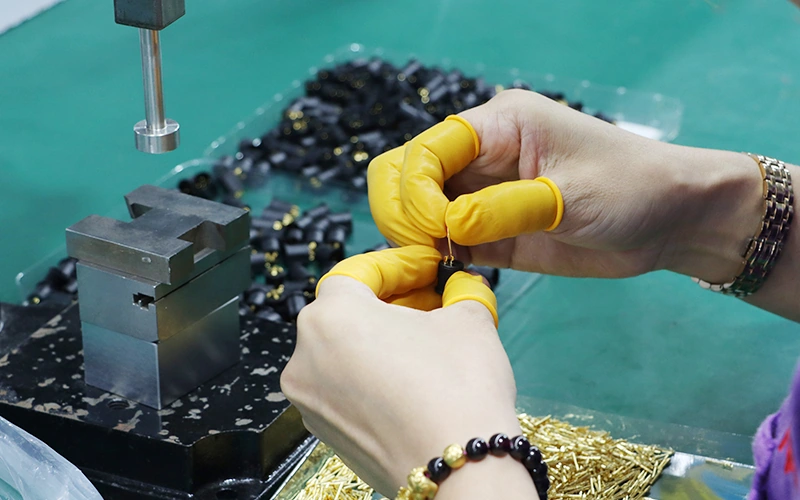

1. Pin Insertion
The first step is inserting the contact pins into the connector housing.
Key control points:
- Correct pin position
- Proper insertion depth
- Contact alignment
Accurate pin placement ensures reliable electrical connection during final assembly.

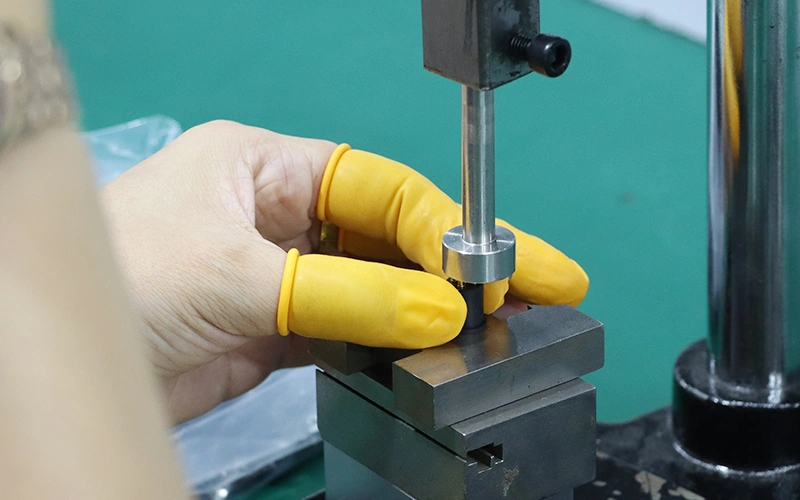

2. Contact Staking
After pin insertion, the contacts are mechanically secured.
This process helps:
- Prevent contact movement
- Improve assembly stability
- Maintain connector reliability
Controlled staking parameters ensure consistent production quality.

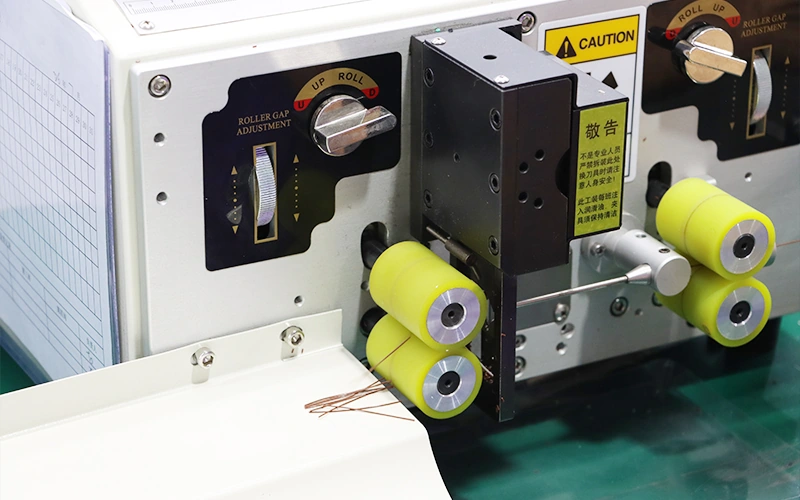

3. Cable Preparation
The cable is prepared according to the approved production requirements.
Process includes:
- Cable cutting
- Length control
- Jacket preparation
Accurate cable preparation directly affects:
- Final assembly dimension
- Installation performance
- Production consistency

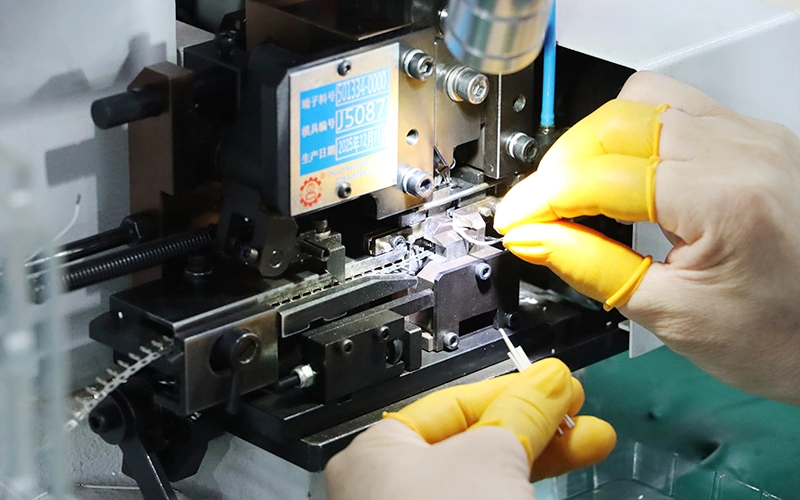

4. IDC Termination
The cable conductors are connected through IDC termination.
Key advantages:
- Efficient connection process
- Stable electrical contact
- Suitable for repeat production
The process requires accurate alignment between:
- Cable position
- Contact structure
- Termination force
5. Core Wire Stripping
The inner conductors are prepared for the next connection process.
Important controls include:
- Strip length
- Conductor protection
- No strand damage
Proper wire preparation ensures reliable electrical performance.

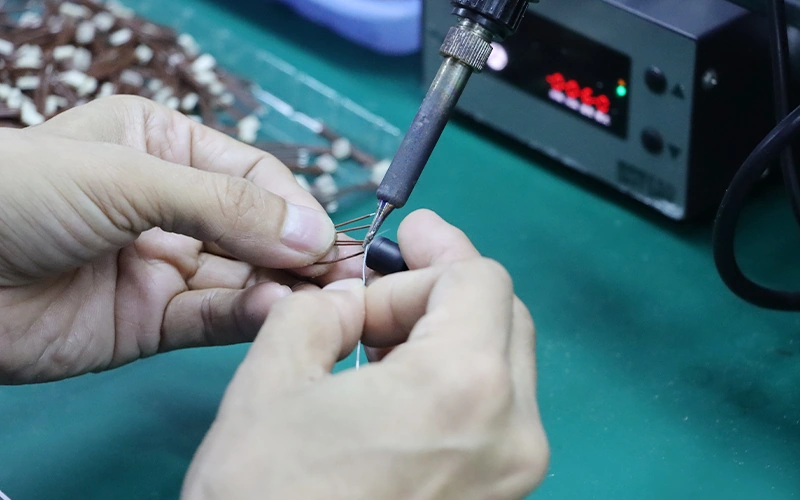

6. Precision Soldering
For required connection points, FPIC performs precision soldering.
The process controls:
- Solder quality
- Connection strength
- Workmanship consistency
Visual inspection is performed to verify solder appearance and connection condition.

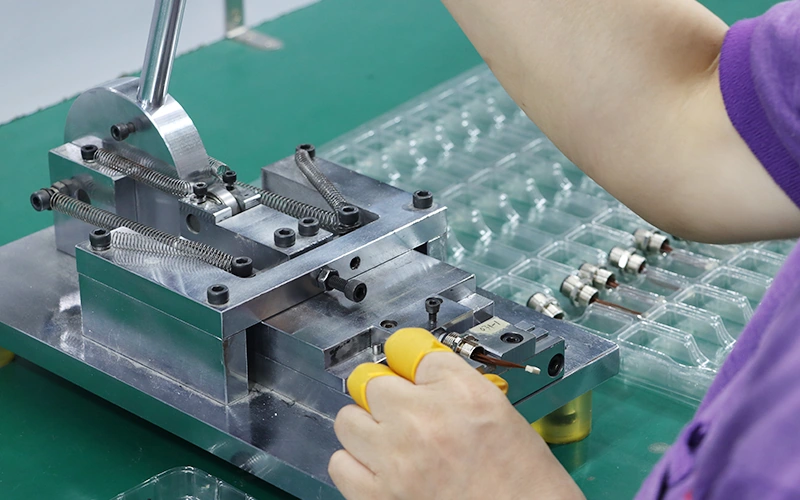

7. Housing Assembly
After internal connection completion, the connector housing is assembled.
The process verifies:
- Correct component positioning
- Mechanical fit
- Assembly consistency

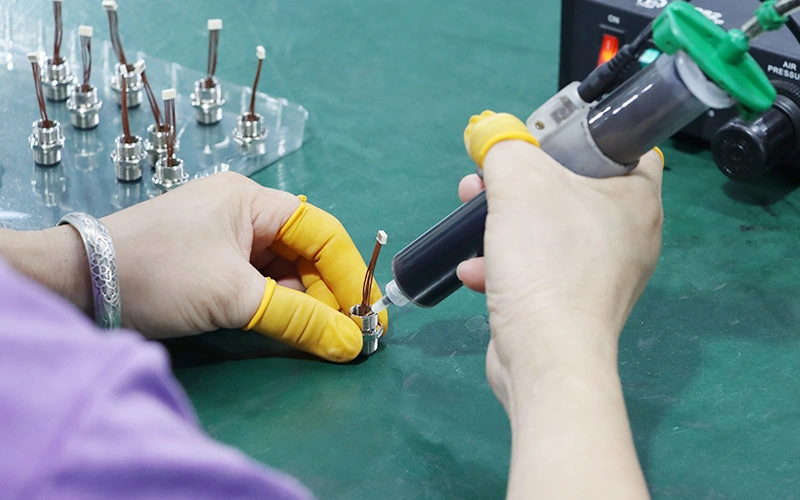

8. Adhesive Potting and Sealing
To improve environmental protection, adhesive potting is applied.
Benefits:
- Improved sealing performance
- Protection against moisture
- Enhanced product reliability
This process is especially important for industrial applications requiring stable operation.

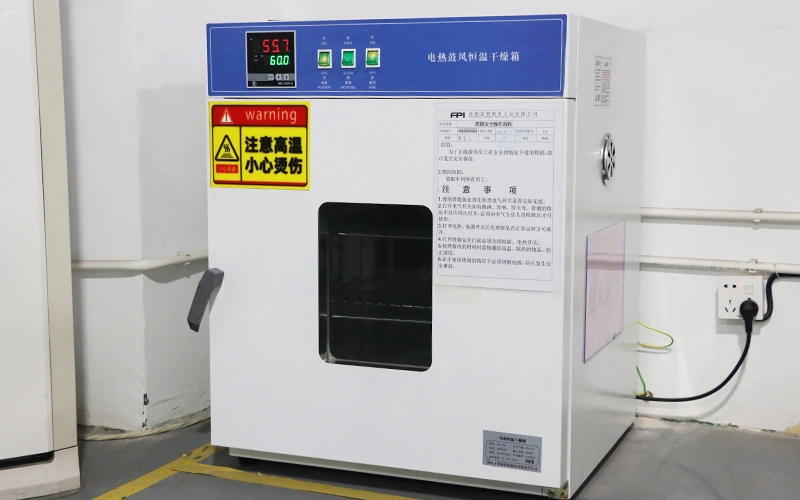

9. Curing Process
After potting, the assembly undergoes controlled curing.
The curing process ensures:
- Adhesive performance
- Stable sealing
- Reliable mechanical protection
10. Electrical Testing
Each finished cable assembly undergoes electrical verification.
Testing may include:
- Continuity testing
- Open/short circuit detection
- Electrical performance verification
Testing records help ensure each assembly meets the approved requirements.
11. Final Inspection and Packaging
Before shipment, finished products are inspected for:
- Appearance
- Assembly quality
- Connector condition
- Label requirements
- Packaging requirements
Only qualified products proceed to delivery.
Project Follow-Up and Production Transparency
During this project, FPIC maintained close communication with the customer throughout development and production preparation.
The project team provided real-time updates covering:
- Engineering discussions
- Sample development
- Manufacturing process verification
- Production progress
- Quality confirmation
FPIC also recorded the manufacturing process video to provide customers with direct visibility into production operations.
This transparent communication approach helps customers understand:
- How their products are manufactured
- Which processes are controlled
- How quality is verified
Project Results
Through engineering collaboration and manufacturing optimization, FPIC successfully supported the customer with:
Stable Product Development
The customized M12 5-pin cable assembly met the customer’s application requirements.
Improved Assembly Efficiency
Connector optimization helped improve installation convenience.
Controlled Manufacturing Quality
Production processes and electrical testing ensured consistent product performance.
Reliable Supply Capability
FPIC supported the transition from development to repeat production.
Why Choose FPIC for Custom M12 Cable Assemblies?
FPIC provides customized cable assembly solutions for industrial applications, combining:
Engineering Support
- Design review
- Product optimization
- Prototype development
- Manufacturing feasibility evaluation
Manufacturing Capability
- Cable preparation
- IDC termination
- Soldering
- Assembly
- Potting
- Electrical testing
Quality Management
- ISO 9001
- ISO 14001
- ISO 13485
- IATF 16949
- UL and TUV certifications
Digital Manufacturing Control
FPIC integrates:
- PLM
- ERP
- MES
- WMS
to support:
- Production management
- Process control
- Quality records
- Traceability
Related Applications
This M12 cable assembly solution is suitable for:
- Industrial sensors
- Automation equipment
- Monitoring systems
- Control equipment
- Industrial communication devices
FAQ
What is an M12 5-pin cable assembly used for?
M12 5-pin cable assemblies are commonly used in industrial automation, sensors, monitoring equipment, and control systems requiring reliable signal transmission.
Can FPIC customize M12 cable assemblies?
Yes. FPIC supports customized M12 cable assemblies including cable selection, connector configuration, assembly process optimization, testing, and mass production.
What manufacturing processes are involved in M12 cable assembly production?
Typical processes include pin insertion, contact staking, cable preparation, IDC termination, soldering, housing assembly, potting, curing, electrical testing, and final inspection.
How does FPIC ensure M12 cable assembly quality?
FPIC uses controlled production processes, inspection procedures, and electrical testing to verify product reliability before delivery.
