Robot Drag Chain Wiring Harness Solutions

FPIC provides custom robot drag chain wiring harness solutions for applications involving continuous movement, repeated bending and dynamic routing. Our assemblies are developed for robotic systems, automation equipment and moving machinery that require reliable power, signal and control transmission under guided motion conditions.

From cable structure and connector matching to protection and assembly integration, we support OEM and ODM projects according to drawings, samples, BOM lists and application requirements.

Request a Quote

What Is Robot Drag Chain Wiring Harness

A robot drag chain wiring harness is a dynamic cable and harness assembly designed for applications where cables must move continuously inside a drag chain or cable carrier system. Compared with standard flexible cables, drag chain harnesses are developed for more demanding conditions involving repeated bending, guided movement, high acceleration and long cycle operation.

This type of harness is widely used in robotic systems, automation equipment and industrial machinery where stable power, signal, feedback and control transmission must be maintained under continuous movement.

Main Features of Robot Drag Chain Wiring Harness

Robot drag chain wiring harnesses are developed for frequent movement and bending conditions. Compared with ordinary cables, they are expected to provide stronger dynamic performance and longer service life in guided motion systems.

High Flexibility

Suitable for repeated movement and continuous bending in drag chain applications.

High Torsional Resistance

Suitable for applications where the harness may experience twisting and multi-directional movement.

Resistance to Harsh Industrial Conditions

Material structures can be selected to support oil resistance, water resistance, UV resistance, weather resistance, low-temperature resistance and wear resistance according to project requirements.

Strong Bending Resistance

Designed for dynamic routing conditions and repeated flexing in cable carrier systems.

Capability for Heavy Mechanical Load

Can be developed for applications exposed to strong mechanical stress, repeated movement and industrial operating load.

Longer Service Life in Dynamic Applications

When designed according to motion profile and routing condition, drag chain harness assemblies can withstand many folding and bending cycles and help improve overall equipment service life.

Machine Internal Connection Wire Servo Wring Harness Terminal Wiring Harness Controlling Wire Robot Wiring Harness Robot Drag Chain M Series Wiring Harness

Typical Applications

Robot drag chain wiring harness solutions are widely used in applications that require stable electrical connection under guided movement, repeated bending and dynamic routing.

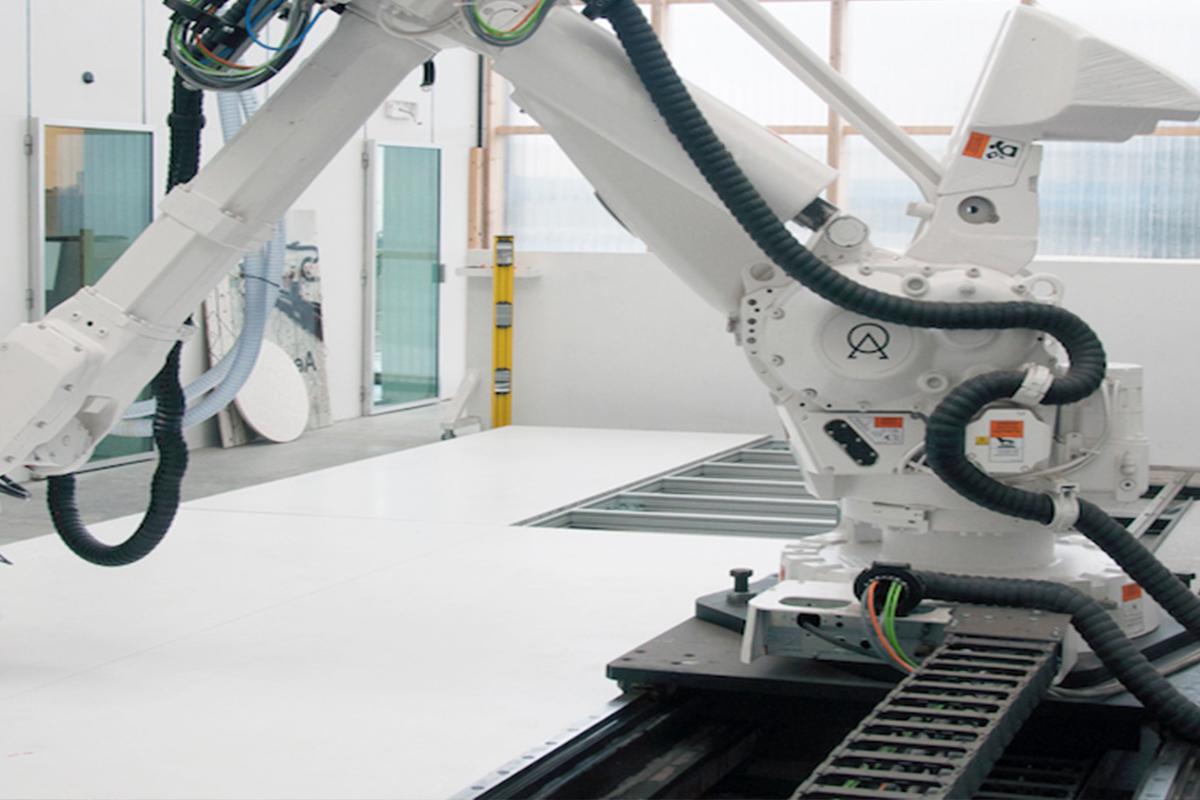

Industrial Robot Arms

For repeated movement in robotic arms and multi-axis automation systems.

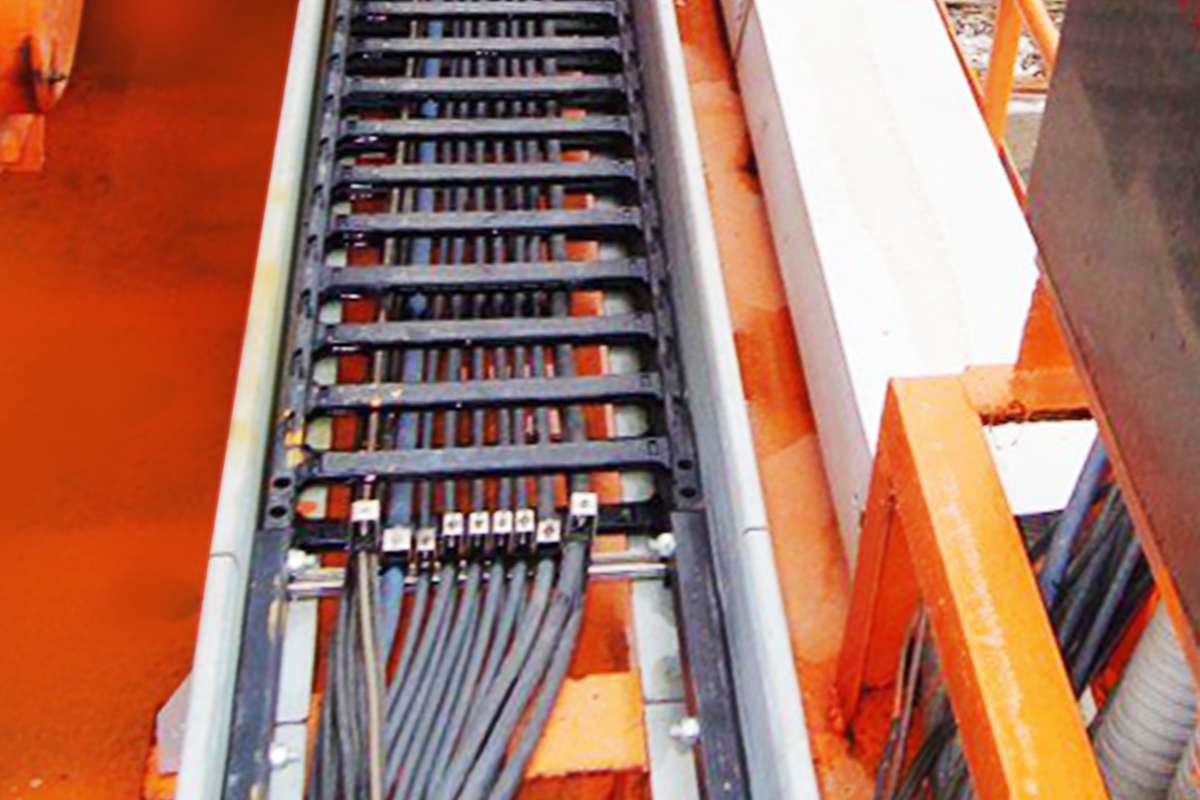

Airport Construction Equipment

For dynamic power and control connection in airport handling and automation equipment.

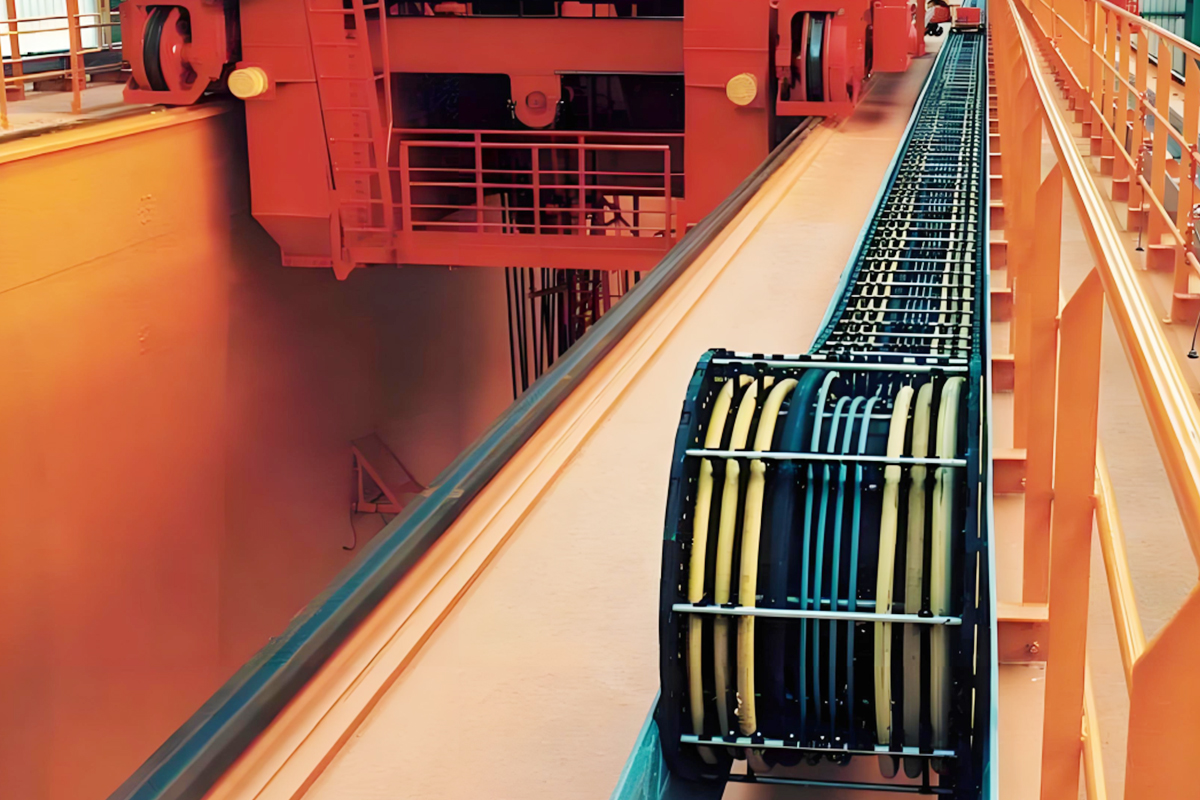

Port Facilities

For moving electrical connection in port automation and handling systems.

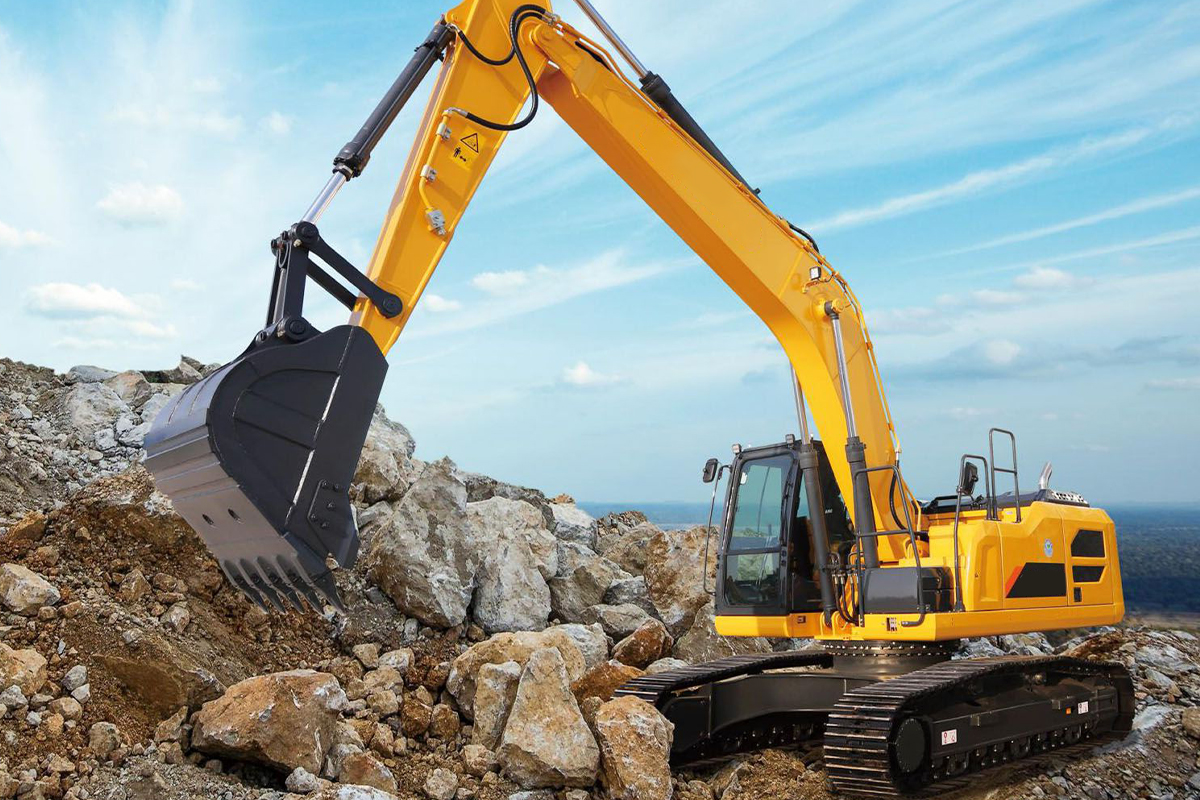

Engineering Machinery

For dynamic harness routing in construction and heavy-duty machinery applications.

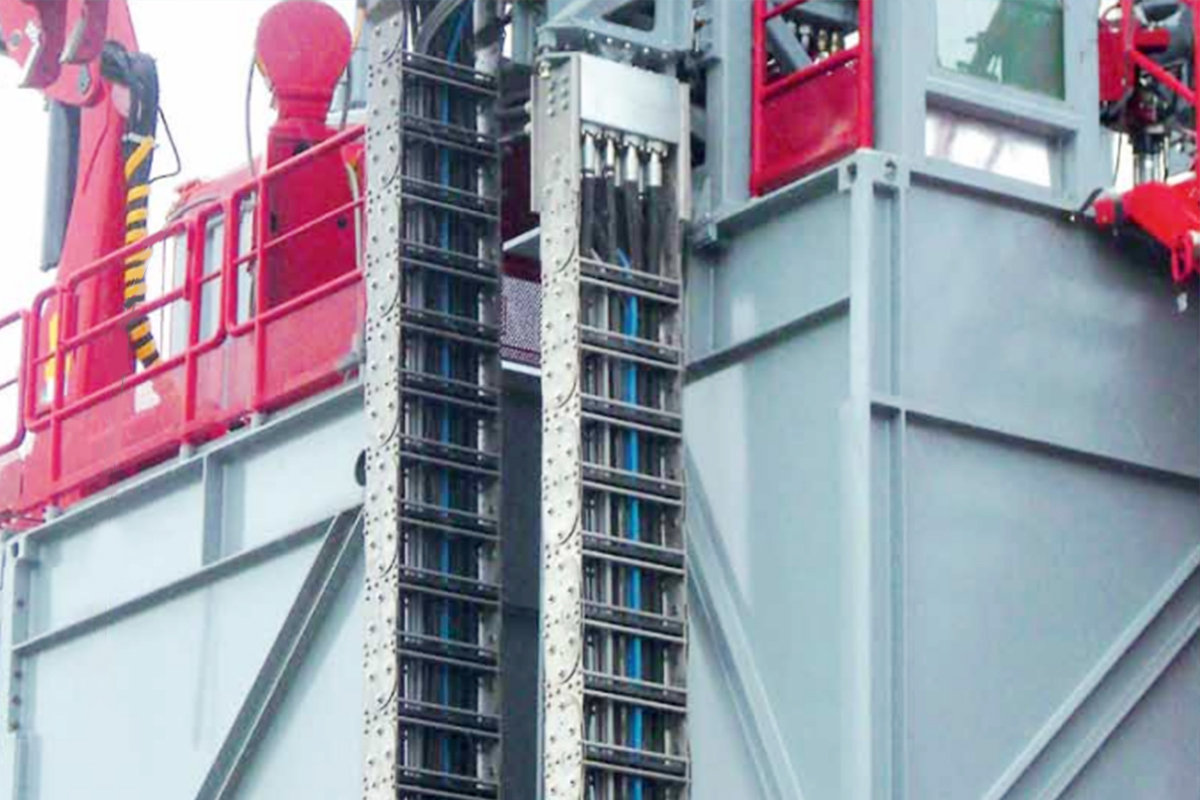

Engineering Cranes

For guided movement and continuous flex applications in crane systems and lifting equipment.

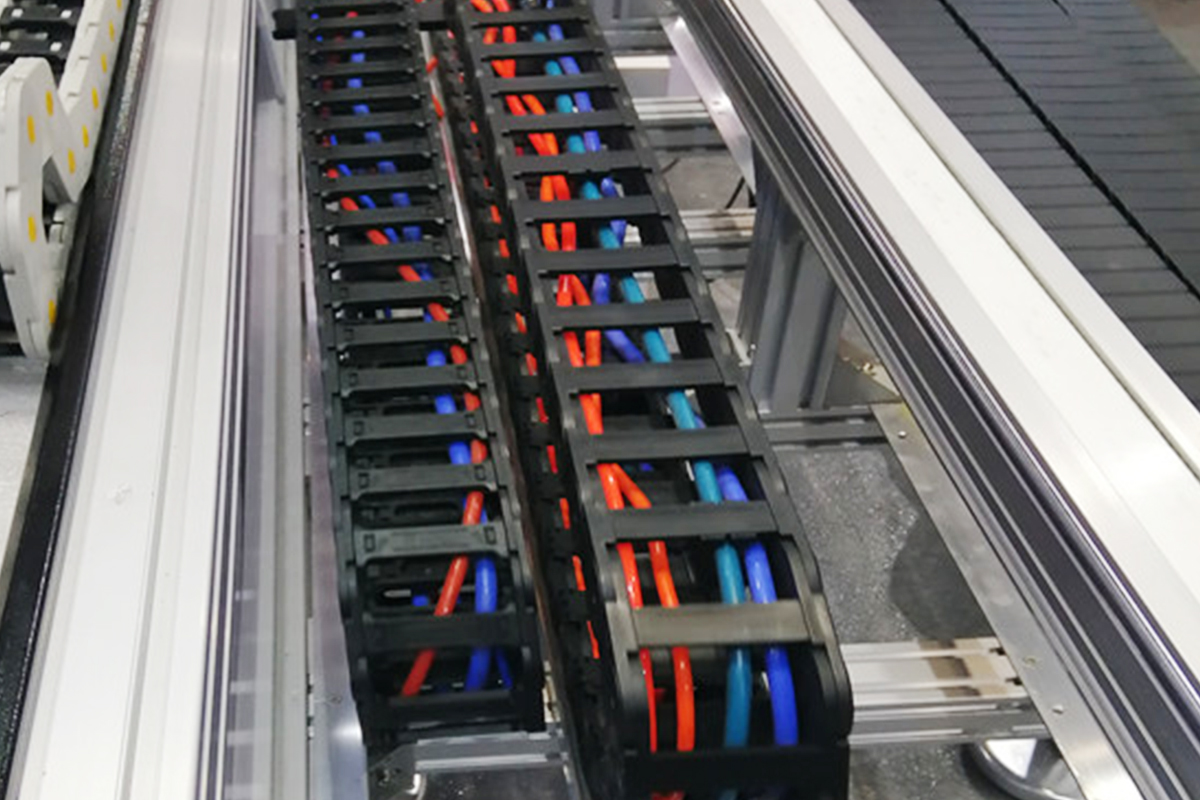

Large-Scale Machine Tools

For power, signal and control transmission in machine tools with moving structures.

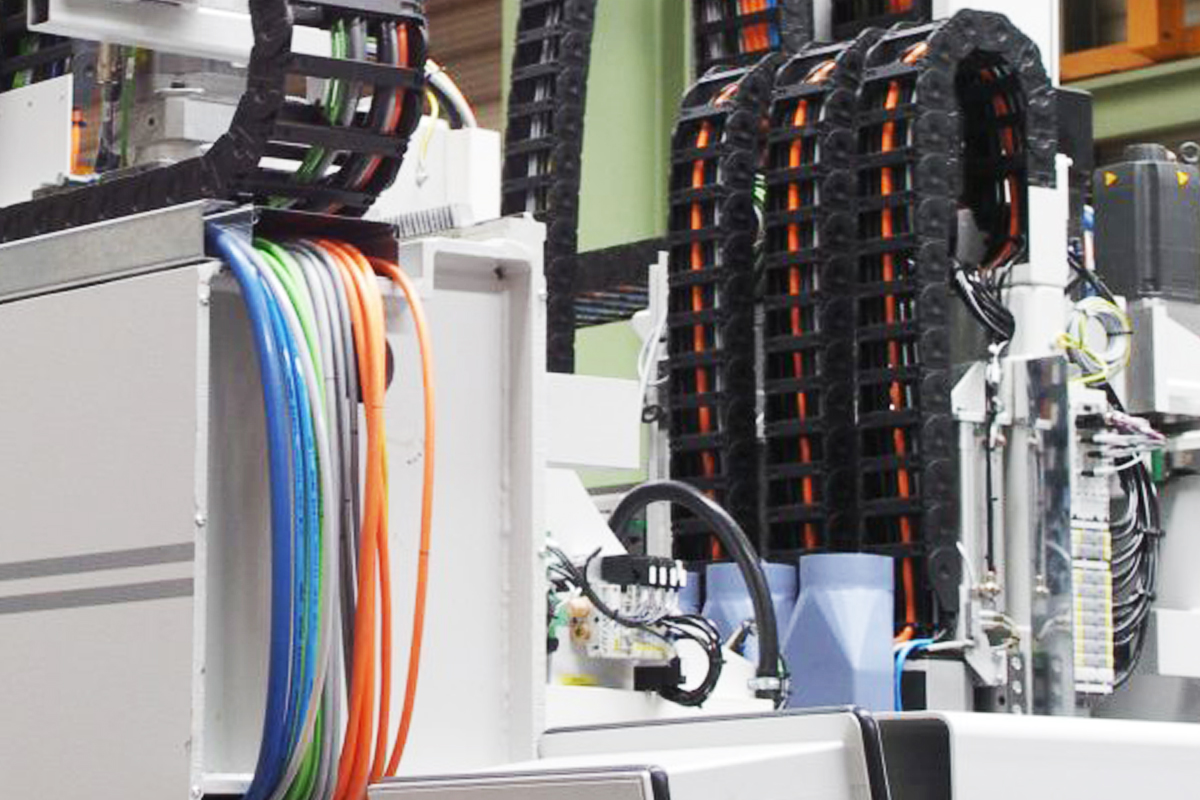

Industrial Machinery

For automation equipment, moving platforms and dynamic internal routing applications.

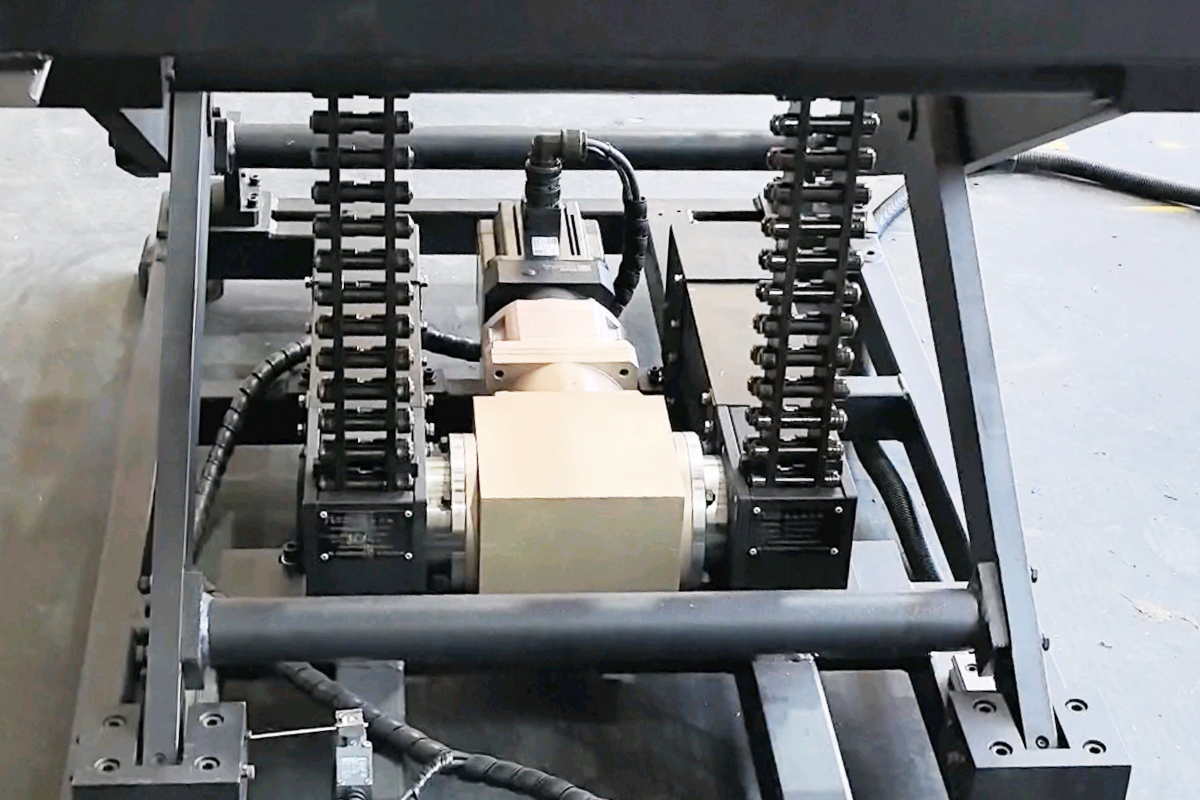

Rotary or Lifting Worktables

Suitable for connection systems involving repeated movement, lifting motion or guided rotation.

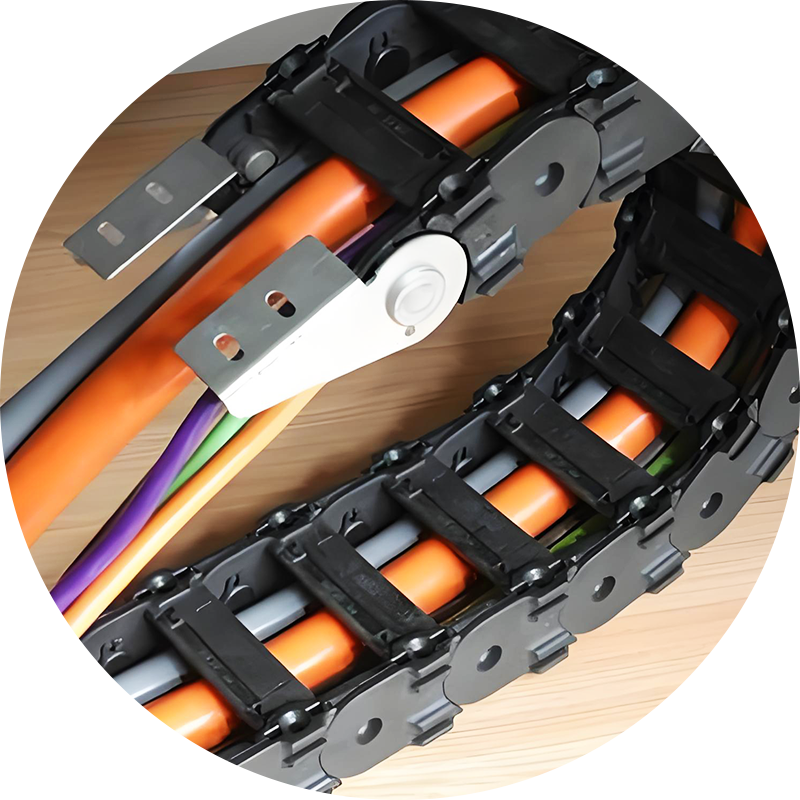

What Makes Drag Chain Harness Different

Drag chain harness projects are not only about electrical connection. They are also about dynamic movement behavior, routing compatibility and long-term mechanical durability.

Compared with standard industrial wiring harnesses, robot drag chain harness assemblies usually require closer evaluation of:

bending radius
travel length
acceleration and movement speed
cycle demand
cable carrier compatibility
wear and friction exposure
torsion condition

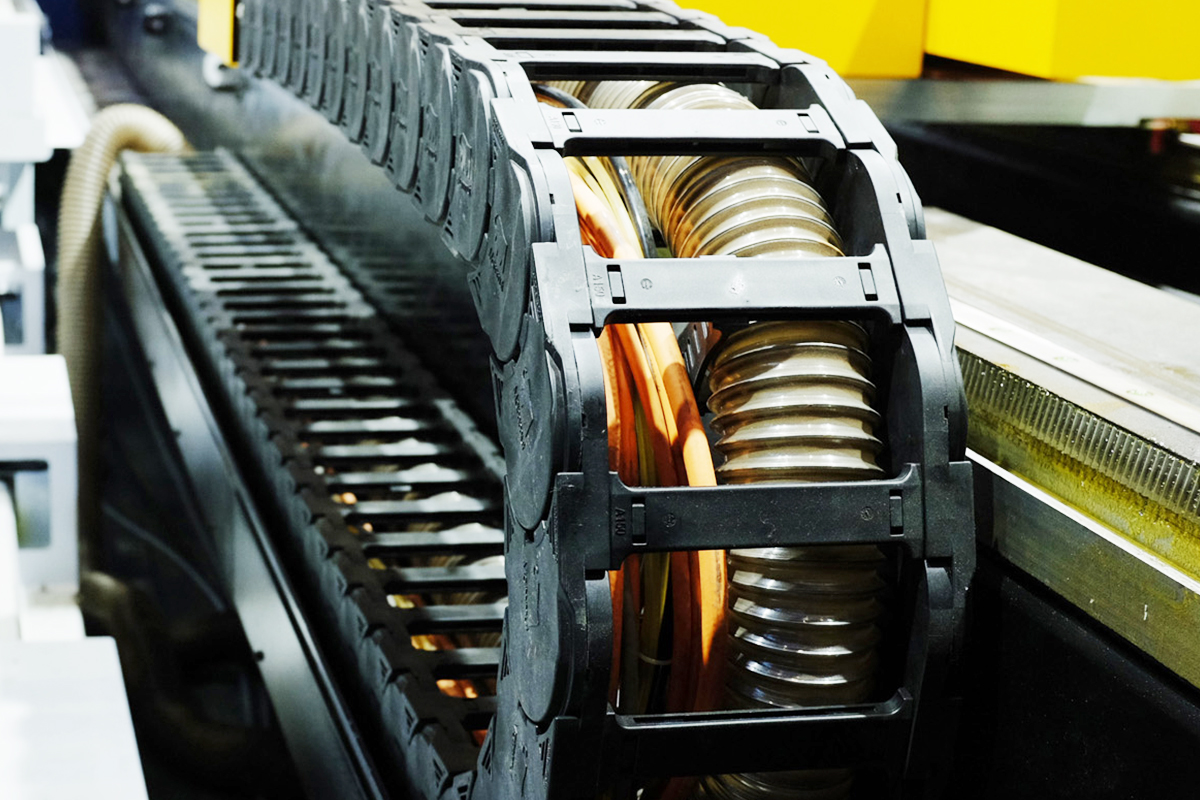

strain relief and fixing structure

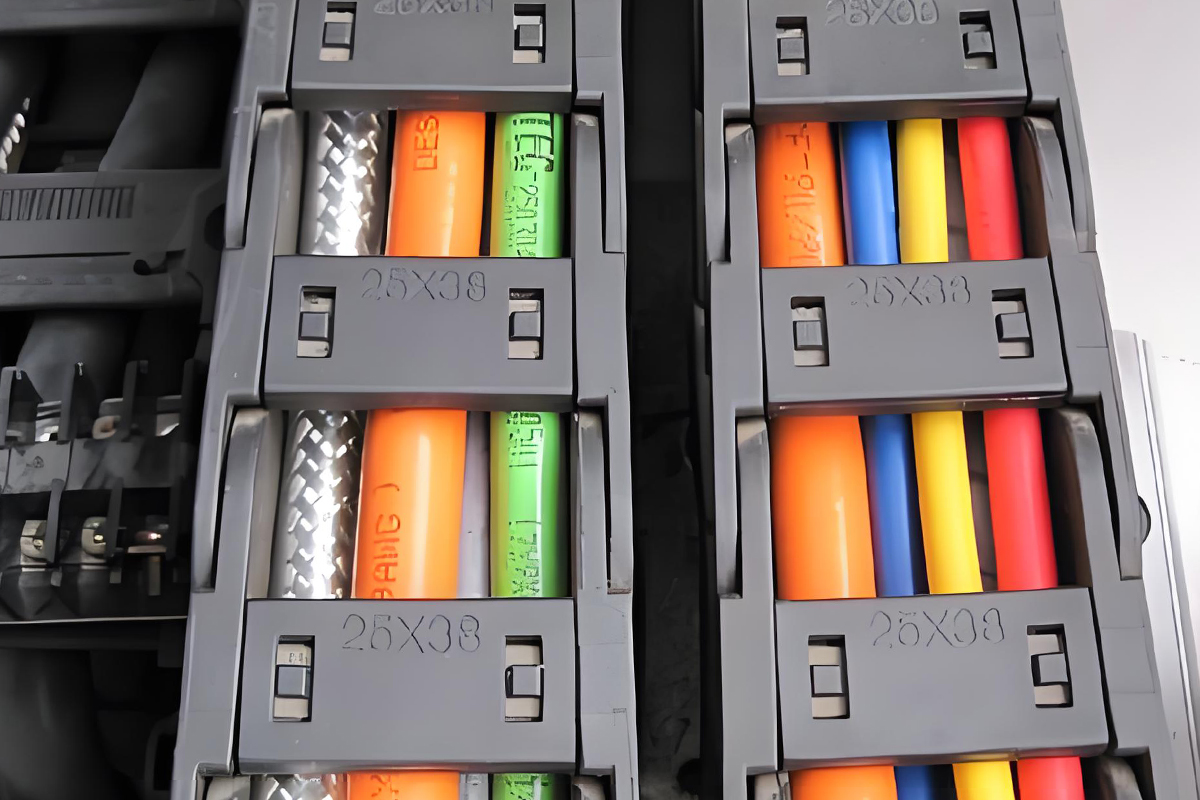

shielding stability under movement
environmental resistance requirements

Start Your Robot Wiring Harness Project

Looking for a reliable partner for custom robot wiring harness solutions? Send us your drawings, BOM lists, robot model information or samples. FPIC will support your project from engineering review to production.
